DSP - Linear Convolution of Discrete Time Signals (Scilab Code with Plot)

Code:

clc; clear; close;

x = input("Enter the first sequence: ");

h = input("Enter the second sequence: ");

x_origin = input("Enter the position of origin in first sequence: ");

h_origin = input("Enter the position of origin in second sequence: ");

x_lower = -(x_origin - 1);     //lower range of x

h_lower = -(h_origin - 1);     //lower range of h

x_upper = length(x) - x_origin;     //upper range of x

h_upper = length(h) - h_origin;     //upper range of h

n_lower = x_lower + h_lower;

n_upper = x_upper + h_upper;

n = n_lower :1: n_upper;

disp(x_lower, "x_lower = ");

disp(h_lower, "h_lower = ");

disp(x_upper, "x_upper = ");

disp(h_upper, "h_upper = ");

disp(n, "n = ");

disp(conv(x, h), "Convolution = ");

y = conv(x, h);

subplot(3, 1, 1);

plot2d3(x_lower:1:x_upper, x, style=color("green"));

xtitle("First Sequence","n","x(n)");

a = gca();

a.x_location = "origin";

a.y_location = "origin";

a.children.children(1).thickness = 2;

subplot(3, 1, 2);

plot2d3(h_lower:1:h_upper, h, style=color("red"));

xtitle("Second Sequence","n","h(n)");

a = gca();

a.x_location = "origin";

a.y_location = "origin";

a.children.children(1).thickness = 2;

subplot(3, 1, 3);

plot2d3(n, y, style=color("blue"));

xtitle("Linear Convolution: x(n)*h(n)","n","y(n)");

a = gca();

a.x_location = "origin";

a.y_location = "origin";

a.children.children(1).thickness = 2;

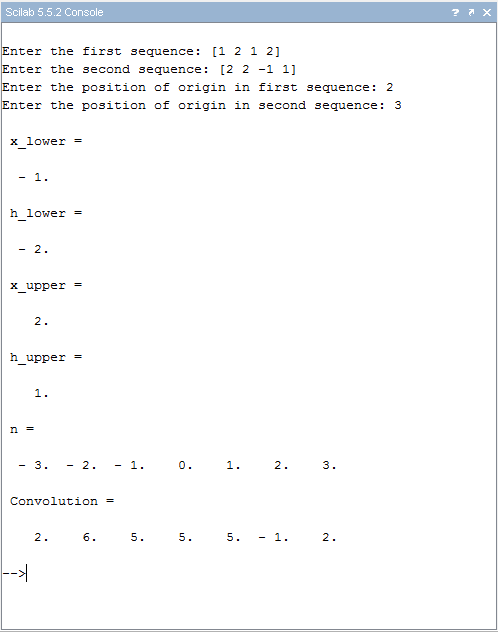

Console I/O:

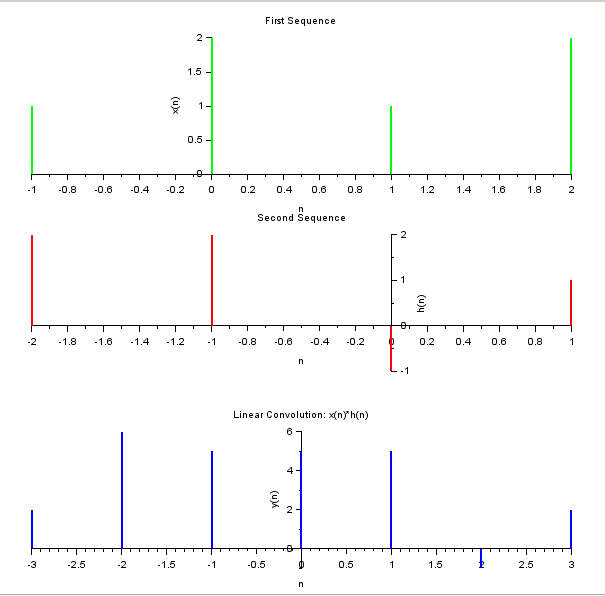

Plot:
